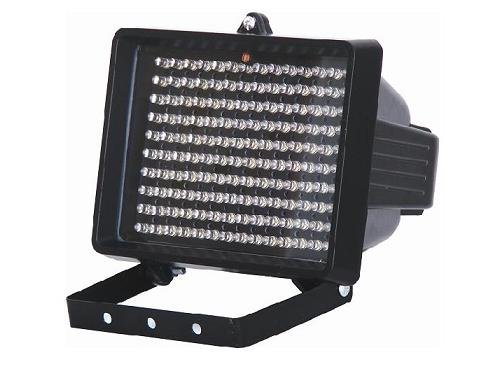

Pinecom S-8100 Long Range IR LED Illuminator

Features of Pinecom S-8100 Long Range IR LED Illuminator

S-8100 200 Feet Long Range Infrared Illuminator for Day/Night Cameras. Heavy Duty Metal housing installed with 140 Infrared LED , illuminates up to 200 feet away with very dim red visible light, but will appear like a bright spot light source through the camera in total darkness.(for infrared Day/Night cameras) Specifications : LED: 140 Infrared LEDs LED Band Length : 850nM (Nanometer) IR LED Projecting Angle : 28 Degree Range: IR Light Transmits up to 200 feet, best view range between 80~160 feet. (Covered area 20 feet wide in distance of 30 feet) Body: Metal and clear tempered glass LED cover. Weather proof for indoor / outdoor application. Mounting bracket included. Case Color: Black Sensor: Opto Light sensor for LED On/Off to save power at day time. Power Source: 12V DC 1100mA. (Power Supply included) Weight: 3 lb. Size: 4.75"(H) x 4."(D) x 6.5"(W) How it works : Iluminator will stay off when there is enough light source such as day time, illuminator will be triggered ON by the opto light sensor at the right hand side of the circuit box at the back of the illuminator. If you want to keep the illuminator turn on al the time, you may use a black electrical tape to cover up the sensor.

1.) Up to 200 feet IR Range;
2.) 140 Powerful IR LED @ 850nM;
3.) Indoor/Outdoor Weather Proof Housing;
4.) 28 Degree IR Light Projecting;
5.) 12V DC Powered For Safety;
